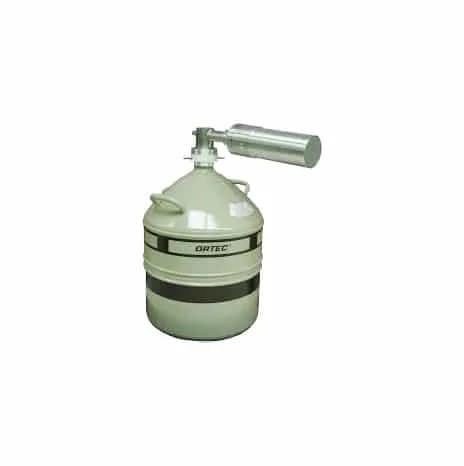

Cryostat & Dewar

Manufacturer: Ortec
HTTS ref.: HTS-NUC-0065
HTDS ref.: CRYOSTAT DEWAR
Division: Nucléaire & Radioprotection

Gallery and technical drawings

Description

HTDS propose une large gamme de cryostat et Dewar à azote liquide pour refroidir vos détecteurs. La configuration du système de refroidissement dépend de votre système. Nos ingénieurs produits sont à votre disposition pour conseiller le système de refroidissement le plus adapté. Les détecteurs proposés ont deux configurations de connexion possibles : StreamLine : La capsule détecteur et le cryostat partagent le même vide, la sélection se fera avec un cryostat ou cryostat/Dewar ayant une entrée de diamètre équivalent à votre capsule détecteur (permet de garder le système totalement hermétique) Pop-Top : La capsule Pop-Top a été spécialement conçu pour garder une zone vide indépendante du cryostat. Les détecteurs ‘pop-top’ sont adaptables à tous les cryostats/Dewar du marché, incluant notre refroidisseur électrique X COOLER III

Une large gamme de refoidisseur azote pour vos détecteurs HPGe et SiLi

Key features

Modèles comptatibles Streamline et pop-top
Plus d’une centaine de références disponibles

Technical specifications

mm: 5 229 267 419 292 320 452 429 610
(in): (0.2) (9.0) (10.5) (16.5) (11.5) (12.6) (17.8) (16.9) (24.0)
Dim.: UNIT TOL. ± 1.2L 3L 5L 3L 7L 7.5L 13L 30L

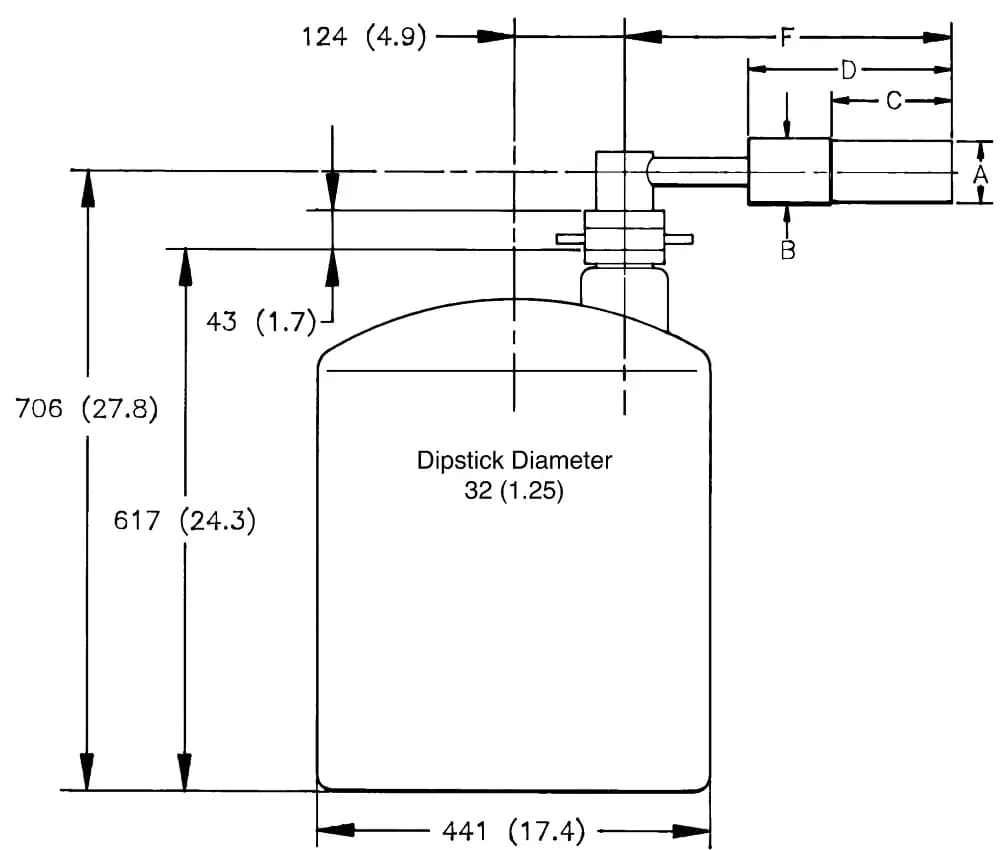

Note: Cryostat/Dewar drawings are NOT to scale, see tables that follow for complete dimensions.
Type: Cryostat et Dewar
0–35: 25–45 25–65 60–110
CFG-GG: DWR-1.2G 1.2-liter All-Orientation Dewar Included with Cryostat
CFG-HJ: J-type Cryostat with Remote Preamp and Dewar. (for -HJ option only)
CFG-SD: DWR-7.5D 7.5-liter Down-Looking Dewar Included with Cryostat
CFG-SH: Horizontal Cryostat (Dipstick type). Includes LNTC1.25WH. Dewar not included.*
CFG-SJ: J-type Cryostat with Dewar
CFG-SL: Side-Looking Cryostat with Dewar
CFG-SV: Vertical Cryostat (Dipstick type). Includes LNTC1.25WH. Dewar not included.*
DWR-30: 30-liter Dewar
VOLUME: VOLUME VOLUME
CFG-PH4: Horizontal Cryostat (Dipstick type). Includes LNTC1.5WH. Dewar not included.* Choose DWR-30 or
CFG-PV4: Vertical Cryostat (Dipstick type). Includes LNTC1.5WH. Dewar not included.* Choose DWR-30 or
DWR-13B: 13-liter Side-Looking Dewar Included with Cryostat
DWR-13D: 13-liter Down-Looking Dewar Included with Cryostat
DWR-30B: 30-liter Side-Looking Dewar Included with Cryostat
DWR-30D: 30-liter Down-Looking Dewar Included with Cryostat
DWR-S/F: Storage/Fill Dewar for DWR-XG
DwR-S/F: CFG-PSHP4
DWR-3.0G: 3.0-liter All-Orientation Dewar Included with Cryostat
DWR-5.0G: 5.0-liter All-Orientation Dewar Included with Cryostat
CFG-GG-LB: Low-Background Gamma Gage Cryostat with Dewar
CFG-HJ-LB: Low-Background J-type Cryostat with Remote Preamp and Dewar. (for -HJ option only)
CFG-PG4-3: Gamma Gage Cryostat with 3-liter Dewar
CFG-PG4-5: Gamma Gage Cryostat with 5-liter Dewar
CFG-PSHP4: Down-Looking Shallow-Hole Probe with 0.7-liter Dewar
CFG-SD-LB: Low-Background Down-Looking Cryostat with Dewar
CFG-SH-LB: Low-Background Horizontal Cryostat (Dipstick type). Includes LNTC1.25WH. Dewar not included.*
CFG-SJ-LB: Low-Background J-type Cryostat with Dewar
CFG-SL-LB: Low-Background Side-Looking Cryostat with Dewar
CFG-SV-LB: Low-Background Vertical Cryostat (Dipstick type). Includes LNTC1.25WH. Dewar not included.*
DWR-30-OP: 30-liter Offset-Port Dewar
Model No.: Description
CFG-PD4-13: Down-looking Cryostat with 13-liter Dewar
CFG-PD4-30: Down-looking Cryostat with 30-liter Dewar
CFG-PS4-13: Side-Looking Cryostat with 13-liter Dewar
CFG-PS4-30: Side-Looking Cryostat with 30-liter Dewar
CFG-SD-XLB: Extra-Low-Background Down-Looking Cryostat with Dewar
CFG-SH-XLB: Extra-Low-Background Horizontal Cryostat (Dipstick type). Includes LNTC1.25WH. Dewar not included.*
CFG-SJ-XLB: Extra-Low-Background J-type Cryostat with Dewar
CFG-SL-XLB: Extra-Low-Background Side-Looking Cryostat with Dewar
CFG-SV, SH: DWR-30-OP 30-liter Offset-Port Dewar
CFG-SV-XLB: Extra-Low-Background Vertical Cryostat (Dipstick type). Includes LNTC1.25WH. Dewar not included.*
DWR-MOD-3L: 3-liter Multi-Orientation Dewar Included with Cryostat
DWR-MOD-7L: 7-liter Multi-Orientation Dewar Included with Cryostat
DWR-MOD-xL: and DWR-xxD
Efficiency: 0–35% 25–45% 25–60% 60–100%
Matériaux: Haute qualité, robustesse
CFG-PD4-7.5: Down-looking Cryostat with 7.5-liter Dewar
CFG-PG4-1.2: Gamma Gage Cryostat with 1.2-liter Dewar (for 83 mm or smaller endcaps) (not compatible with
CFG-PMOD4-3: Gamma Gage Cryostat with 3-liter Multi-Orientation Dewar
CFG-PMOD4-7: Gamma Gage Cryostat with 7-liter Multi-Orientation Dewar
CFG-PS4-7.5: Side-Looking Cryostat with 7.5-liter Dewar
Applications: Laboratoires, Médical, Industriel
CFG-MG4-1.2G: Gamma Gage Cryostat with 1.2-liter Dewar, Pistol Grip handle and mounting holes to fit the M-1-T1 Tripod
For Cryostat: Choose Description
CFG-PMOD4 and: CFG-PS4, CFG-PD4, DWR-xxB
DWR-0.7-SHP-1: 0.7-liter Shallow-Hole Probe Dewar Included with Cryostat
CFG-HJ, SJ, SL: DWR-7.5B 7.5-liter Side-Looking Dewar Included with Cryostat
CFG-SH, DwR-30: CFG-SH, DwR-30-OP
CFG-SV, DwR-30: CFG-PV4, DwR-30
Standard or LB: XLB
Caractéristique: Détail
(in) (0.01) (2.75): (3.25) (3.75) (4.25)
(in) (0.01) (2.95): (3.45) (3.95) (4.45)
CFG-PH4, DwR-30-OP: CFG-PH4, DwR-30
CFG-X-COOL-III-115: X-COOLER III with PopTop connector using 110-120 V ac, 60 Hz Input Power
CFG-X-COOL-III-230: X-COOLER III with PopTop connector using 220-240 V ac, 50 Hz Input Power
Endcap Diameter (in): 2.75 3.00 3.25 3.75
Performance thermique: Isolation supérieure
Endcap Model (dia. mm): -70 -83 -95 -108
Thickness of Al Window: 1 mm 1 mm 1 mm 1.5 mm
Thickness of CF Window: .9 mm nominal .9 mm nominal .9 mm nominal .9 mm nominal
Thicknesso f Be Window: .5 mm .5 mm .5 mm .76 mm
CFG-PG4-1.2 (or -3 or -5): CFG-PMOD4-3 (or -7)
Endcap Model (dia. mm) -70: -83 -108 -70 -83 -108
CFG-PS4-30 (or -13 or -7.5): CFG-PD4-30 (or -13 or -7.5)
Température de fonctionnement: Températures cryogéniques
CFG-GG, DwR-1.2G (or -3.0G, -5.0G): CFG-GG, DwR-MOD3L (or -MOD7L)
CFG-SJ, DwR-30B (or -13B or -7.5B): CFG-HJ, DwR-30B (or -13B or -7.5B)
CFG-SL, DwR-30B (or -13B or -7.5B): CFG-SD, DwR-30D (or -13D or -7.5D)
• Append matching Detector Endcap Size designation to cryostat model: -70, -76, -83, -95, -108 [e.g., CFG-SJ-95 for GEM75-95 or
